CNC Machining of an Aluminum Corrugated Horn for the Digital Communications Industry

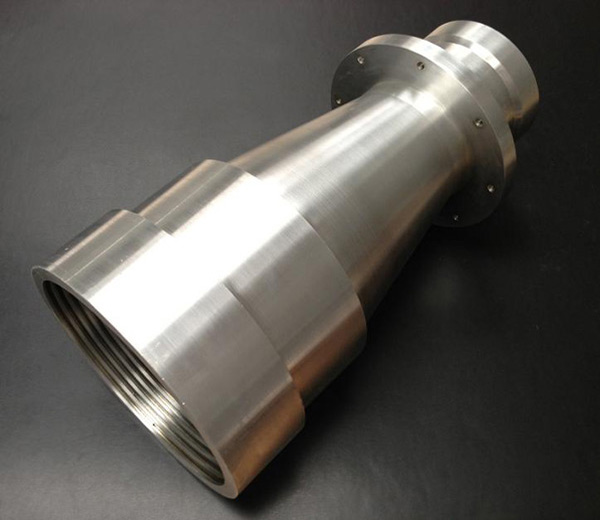

A customer in the digital communications industry contracted us to create the corrugated horn highlighted here.

Utilized in a communications device, this part was composed of aluminum, and expertly manipulated with our advanced CNC turning and milling processes. This is a prime example of our external and internal precision lathe work capabilities, machining the part while maintaining a tight tolerance throughout. The machined unit was subjected to a deburring treatment for cleaning and smoothing, and then anodized to a yellow Iridite finish. Integrity and quality were ensured with comprehensive visual and dimensional inspections.

Completed dimensions of the part were 6" x 14", executed according to customer supplied CAD drawings. Turnaround time for this project was 4 to 8 days, producing 4 pieces for the customer in California.

For more details about this segment number 3 corrugated horn fabrication, or the other precision fabrication and industrial contracting capabilities available, please see the table below or  contact us directly.


Aluminum Corrugated Horn Project Highlights

Product Description
Capabilities Applied/Processes
Equipment Used to Manufacture Part
Overall Dimensions
Materials Used
Material Finish
In process testing/inspection performed
Industry for Use
Volumne
Delivery/Turnaround Time
Delivery Location
Standards Met
Product Name
